A contractor shows up on day one with a stack of drawings and a list of questions those drawings can’t answer. What material is the window frame? What paint finish is required? How does the waterproofing get installed? That’s exactly what construction specifications are for. They’re the written instructions that make drawings complete, and as legally binding contract documents, they carry just as much weight in a dispute as anything shown on the plans.
This podcast is also available on YouTube, Spotify, and Apple Podcasts
What Are Construction Specifications?
Construction specifications are legally binding contract documents. They’re not guidelines, suggestions, or helpful paperwork. They carry the same legal weight as the drawings, and when something goes wrong on a project, the specs are often where you look first. The real-world railing story later in this post is a perfect example of that.
More specifically, architectural specifications are the detailed written instructions that describe what the drawings can’t show. Spec writing is the process of putting all of that into a structured, standardized format that every contractor, subcontractor, and supplier can navigate.
Here’s what construction specifications actually describe:
- Specific materials and products to be used
- Required quality standards for all elements
- Methods for proper installation and execution
- Testing and inspection requirements
- Administrative procedures for the construction process

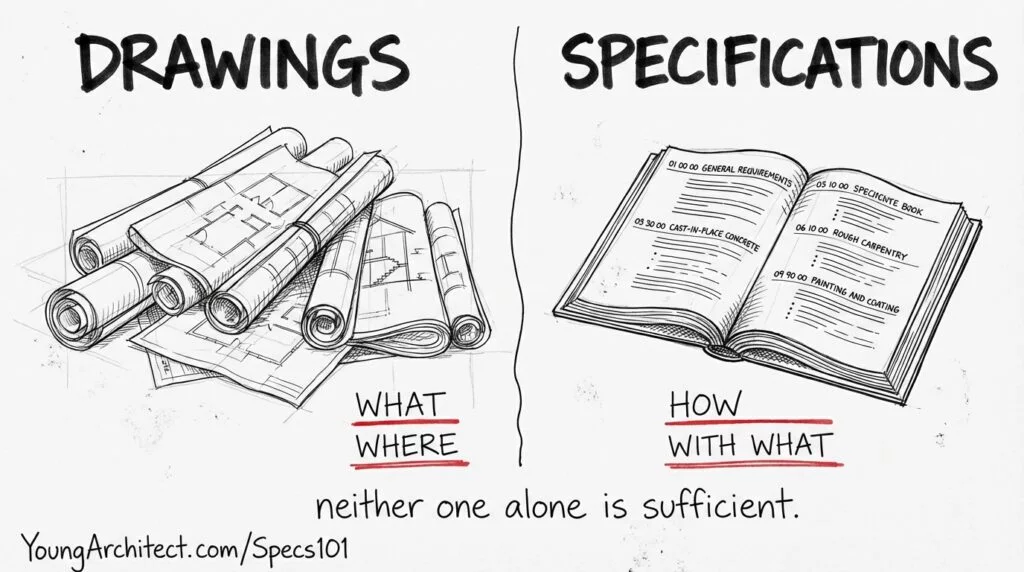

The easiest way to understand specs is to compare them to drawings. Here’s the core difference between drawings and construction specifications:
- Drawings show you what and where: dimensions, locations, the overall shape and spatial relationships.
- Construction specifications tell you how something gets built and with what: the exact materials, products, and installation methods required.
Two analogies that make this click:
The recipe analogy: Drawings are like the photo of the finished dish. You can see how it should look. Construction specifications are the detailed recipe: exact ingredients, quantities, cooking temperature, and preparation method.
The car analogy: Drawings show you the car’s design, color, and shape. Construction specifications define the engine type, horsepower, interior materials, and safety features: the performance characteristics and quality standards behind the surface.
Together, drawings and construction specifications form the complete set of instructions needed to properly execute a project. Neither one alone is sufficient.

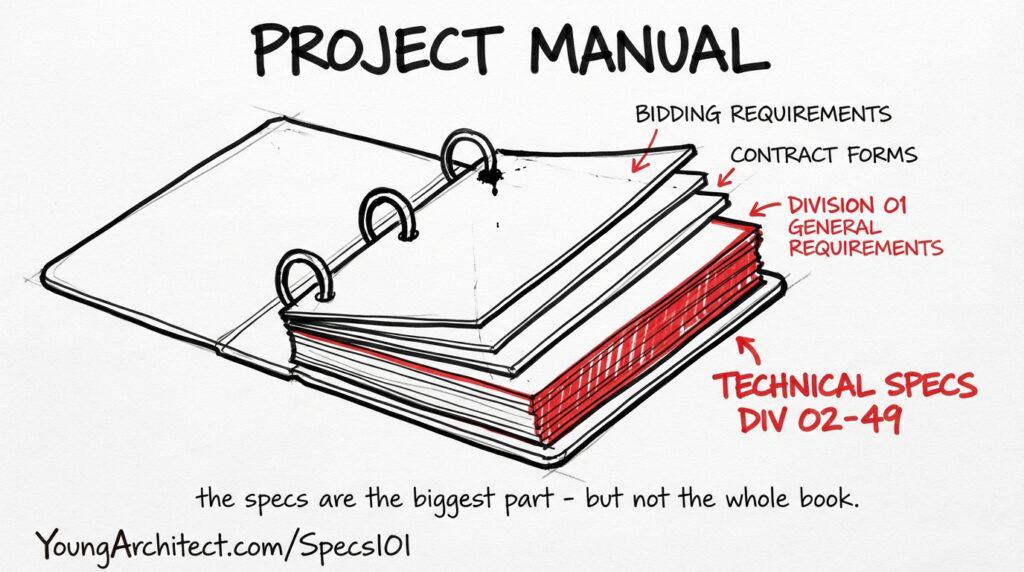

Understanding the Project Manual
The project manual is the comprehensive written documentation package for a construction project. It’s the definitive guide for everyone involved, and it’s bigger than just the specs.
The complete project manual includes:
- Bidding Requirements: instructions to bidders, bid forms, and bidding process information
- Contracting Requirements: contract forms, general conditions, supplementary conditions
- Division 01 General Requirements: the administrative and procedural rules that apply to the entire project
- Technical Specifications (Divisions 02–49): the detailed product and execution requirements organized by CSI MasterFormat divisions
Think of the project manual as the complete “book” for the project. Specifications make up the largest portion, which is why architects often say “the specs” when they technically mean the entire project manual.
During bidding, contractors rely heavily on the project manual to understand the full scope of work and prepare accurate cost estimates. That’s a critical part of the construction bidding process.
This distinction between specs and the full project manual matters for both exam preparation and professional practice. Don’t let the terms get blurred.
How Construction Specifications Are Organized: CSI MasterFormat
The Construction Specifications Institute (CSI®) developed the standardized formats the entire construction industry uses to organize specs. Without this system, every firm would organize their project manuals differently, and nobody would be able to find anything.

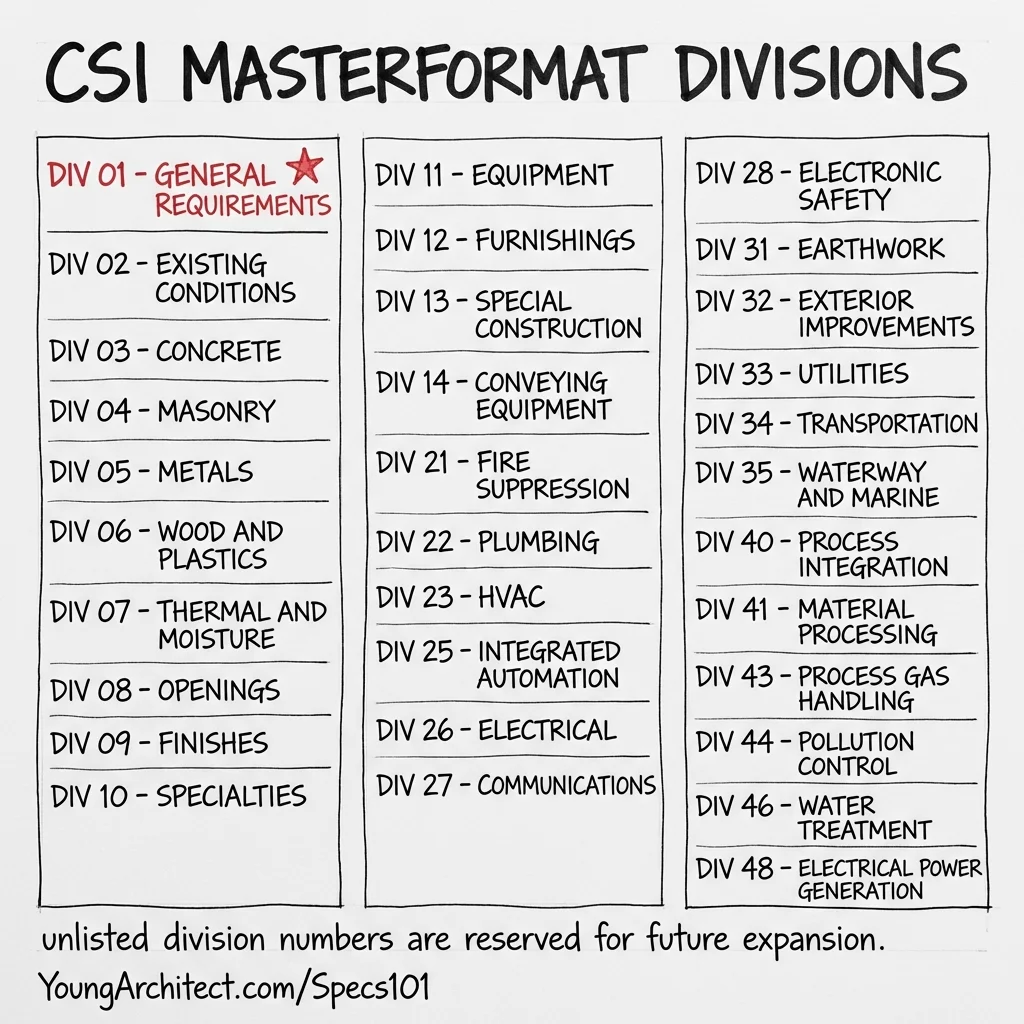

CSI MasterFormat
CSI MasterFormat is the industry standard for organizing specification sections and other written information for commercial and institutional building projects.
It divides construction specifications into 50 divisions organized by work results or construction practices. Some of the most commonly referenced divisions include:
- Division 01: General Requirements
- Division 03: Concrete
- Division 04: Masonry
- Division 05: Metals
- Division 06: Wood, Plastics, and Composites
- Division 07: Thermal and Moisture Protection
- Division 08: Openings
- Division 09: Finishes
- Division 10: Specialties
- Division 23: Heating, Ventilating, and Air Conditioning
- Division 26: Electrical
Within each division, specs break down further into individual sections that address specific products, materials, or systems.

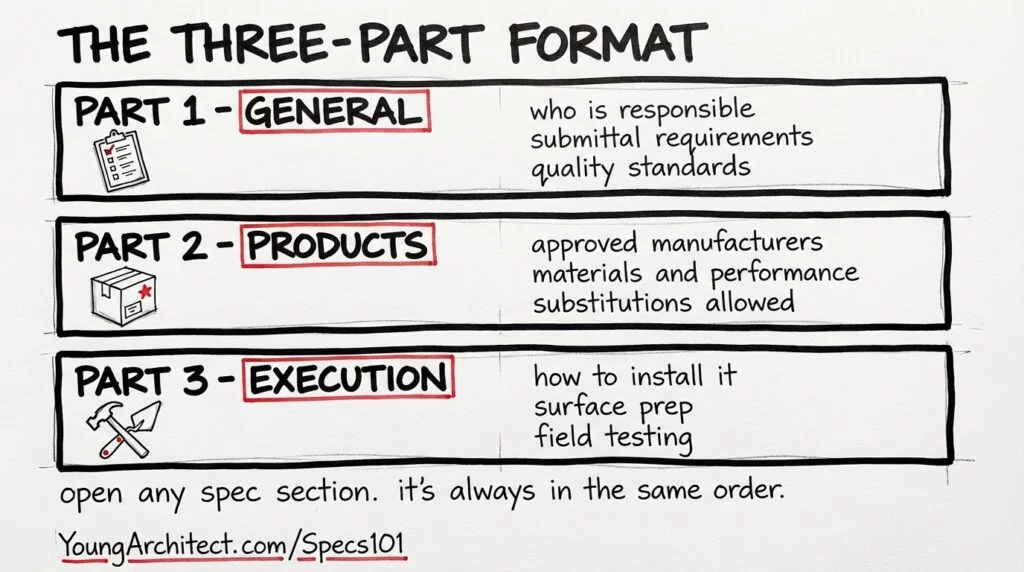

The Three-Part Specification Format: General, Products, Execution
Every construction specification section follows CSI’s standardized three-part format. Once you understand this structure, you can open any spec section on any project and immediately know where to look for what you need.
Here’s what lives in each part:
Part 1: General
This is the administrative section. If you need to know who is responsible for something, or when something needs to happen, it’s in Part 1.
- Submittal requirements
- Quality assurance provisions
- References to industry standards (like ASTM)
- Warranty information
- Project conditions
Part 2: Products
This is where the physical stuff lives. If you need to know what material is required or who makes it, it’s in Part 2.
- Acceptable manufacturers and approved substitutions
- Performance criteria and physical properties
- Components and accessories
- Fabrication requirements
Worth noting: the product data listed in Part 2 is exactly what the contractor must prove they’re providing during the submittal review process. Part 2 and the submittal process are directly connected.
Part 3: Execution
This is the how. If the contractor needs to know how to actually install something, it’s in Part 3.
- Installation methods and surface preparation
- Field quality control
- Testing and verification
- Protection and cleaning
In our CDT® 101 course, this three-part structure is often the moment specs finally “click” for design professionals. Once the pattern is clear, navigating any spec section becomes second nature.

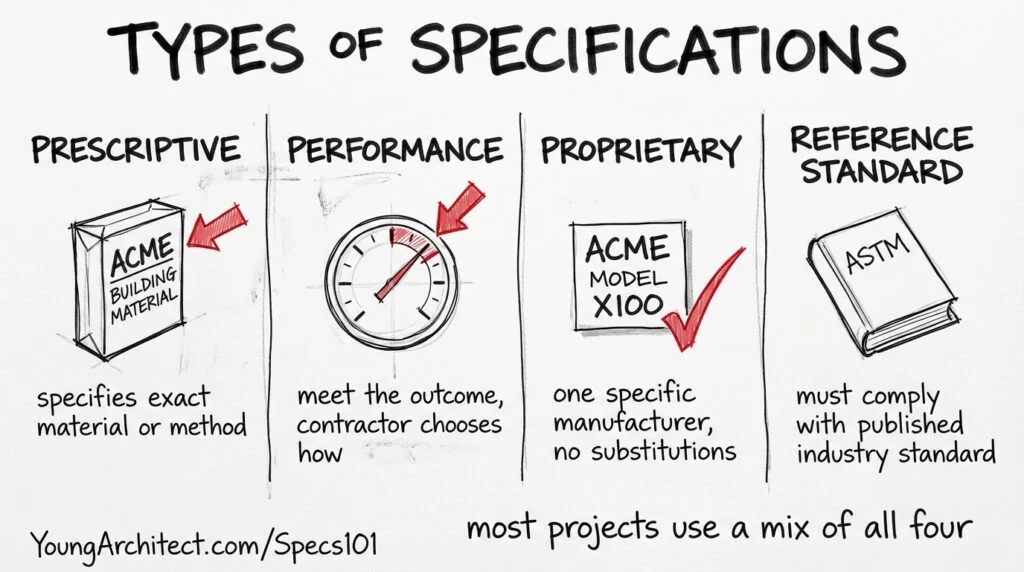

Types of Construction Specifications
There are several different approaches when drafting construction specifications, each with specific advantages depending on project requirements. These include prescriptive specifications, performance specifications, proprietary specifications, and reference standard specifications.
Each type puts different levels of responsibility on the contractor and the architect. For a full breakdown of when to use each one, check out our guide on construction specification types.
How to Read Construction Specifications
Knowing what specs are is one thing. Knowing how to actually use them on a project is what separates candidates who pass the ARE from those who struggle with it.
Here’s a practical approach:
- Start with Division 01 before reading any technical section. Division 01 sets the rules for the entire project: submittal procedures, quality requirements, temporary facilities, closeout requirements. If you skip it, you’ll miss the framework that governs everything else.
- Use the three-part structure to navigate. Need to know what product is required? Go to Part 2. Need to know how to install it? Part 3. Need to know the submittal requirement? Part 1. It’s always in the same place.
- Cross-reference drawings and specifications constantly. Neither one alone tells the full story. When they appear to conflict, most AIA contracts treat them as complementary and require the architect’s interpretation.
- Pay attention to “or equal” language. When a spec lists a product and adds “or equal,” that’s your signal that substitutions are allowed — but the contractor has to prove equivalency. When that phrase is absent, the specified product is required.
Why Construction Specifications Matter
Construction specifications aren’t just administrative overhead. They serve five critical functions that directly impact whether a project succeeds or falls apart.
1. Clarity and Reduced Ambiguity
Clear construction specifications ensure that everyone on the project: architects, contractors, subcontractors, suppliers, and clients, understands exactly what’s required.
Ambiguity is expensive. It leads to errors, rework, and delays. Specs close the gaps that drawings leave open.
2. Legal Protection
Construction specifications are legally binding contract documents. They establish performance requirements and provide the reference point for resolving disputes.
When properly written, specs protect all parties by clearly defining responsibilities and expectations before anyone breaks ground.
3. Quality Control
Specifications set the benchmarks for materials and workmanship that ensure the finished building matches both design intent and client expectations. Understanding the difference between quality assurance and quality control is essential for implementing specs effectively during construction.
4. Accurate Bidding and Pricing
Detailed construction specifications allow contractors to accurately price and bid a project. When specs are vague, contractors pad their numbers to cover uncertainty, which means the owner pays for ambiguity.
Clear specs enable fair, apples-to-apples comparisons between bids and prevent budget surprises later.
5. Long-Term Building Performance
Well-written construction specifications directly impact how a building performs over its entire lifecycle. Proper material selection and clearly defined installation processes are what ensure the building functions as intended — not just on day one, but for decades.
Real-World Example: The Missing Railing
Here’s a story that illustrates exactly why specifications matter in practice.
During a project’s final inspection, the architect noticed the contractor hadn’t installed a required railing at a walkway. The railing wasn’t clearly shown on the site plan. But when the architect referenced the specifications, the requirement was right there, documented in Division 05: Metals.
Because the requirement was in the specs, the contractor had to install the missing railing without a change order, saving the client from unexpected additional costs and ensuring the project was completed as intended.
That’s specs doing exactly what they’re designed to do. Elements missed in the drawings can still be caught and enforced through comprehensive specifications.
Construction Specifications in Practice: A Closer Look
Let’s look at how all of this comes together with a real example. Here’s what a typical specification section for interior paint looks like in CSI format:
Section 09 91 23: Interior Painting
PART 1: GENERAL
1.1 SUMMARY
A. Section includes surface preparation and the application of paint systems on interior substrates.
1.2 SUBMITTALS
A. Product Data: For each type of product.
B. Samples: For each type of paint system and in each color and gloss of topcoat.
PART 2: PRODUCTS
2.1 MANUFACTURERS
A. Basis-of-Design Product: Subject to compliance with requirements, provide Sherwin-Williams Company; ProMar 200 Zero VOC Interior Latex Paint or comparable product by one of the following:
1. Benjamin Moore & Co.
2. PPG Architectural Finishes, Inc.
2.2 PAINT, GENERAL
A. Material Compatibility: Provide materials that are compatible with one another and with substrates.
B. VOC Content: Products shall comply with VOC limits of authorities having jurisdiction.
PART 3: EXECUTION
3.1 EXAMINATION
A. Examine substrates and conditions for compliance with requirements for maximum moisture content and other conditions affecting performance of the Work.
3.2 PREPARATION
A. Remove hardware, covers, plates, and similar items already in place that are removable and are not to be painted.
B. Clean substrates of substances that could impair bond of paints.
3.3 APPLICATION
A. Apply paints according to manufacturer’s written instructions.
B. Apply two coats of paint to all surfaces.
This example shows how a single spec section answers questions the drawings never could: which manufacturer, what VOC requirements, how many coats, what preparation is required.
Creating effective specifications also means avoiding the common specification writing errors that create disputes and liability exposure. We analyze spec samples like this one in our ARE 101 courses to help candidates recognize these distinctions under exam pressure.
Practical Applications for ARE/CDT Candidates
Understanding construction specifications is critical for success on both the ARE and the CDT® exam.
Specifications are a major topic on the Project Development and Documentation (PDD) exam. NCARB specifically calls out project manual and specification knowledge as 12–18% of PDD exam content. If you’re studying for PDD, our PDD 101 course covers specs in depth alongside construction documents and MEP coordination.
Common exam scenarios you’ll run into:
- Determining whether information belongs in drawings or specifications
- Understanding how specifications impact construction administration
- Recognizing the legal implications of specifications
- Identifying proper specification formatting and organization
Frequently Asked Questions
What are construction specifications?
Construction specifications are the written documents in a construction contract that describe materials, quality standards, and installation methods. While drawings show what goes where, specifications explain how things get built and what products to use. They’re legally binding and carry the same weight as drawings in a dispute.
What is the difference between drawings and specifications?
Drawings show dimensions, locations, and visual relationships: the what and where. Specifications describe materials, products, and installation methods: the how and with what. Together they form the complete set of contract documents. Neither one alone is sufficient.
What is a project manual in construction?
A project manual is the complete written documentation package for a construction project. It includes bidding requirements, contract forms, Division 01 general requirements, and the technical specifications organized by CSI MasterFormat divisions. The specs are the largest portion of the project manual, which is why the terms are often used interchangeably. They’re not the same thing.
What is the CSI three-part specification format?
The CSI three-part format divides every specification section into: Part 1 General (administrative requirements, submittals, quality assurance), Part 2 Products (materials, acceptable manufacturers, performance criteria), and Part 3 Execution (installation methods, field quality control, testing). This standardized structure lets anyone navigate any spec section quickly, regardless of the project.
What types of construction specifications are there?
The four main types are prescriptive (specifying an exact product), performance (specifying required outcomes), proprietary (naming a specific manufacturer), and reference standard (citing an industry standard like ASTM). Each type puts different levels of responsibility on the contractor and architect. Most project manuals use a mix depending on how critical each element is.
Next Steps and Key Takeaways
If you’re working toward your license and want a structured path through specs and every other topic the ARE throws at you, ARE Boot Camp is designed exactly for that.
Construction specifications are an essential component of every project. Here’s the short version of everything covered above:
- Specs provide detailed written information that complements architectural drawings
- They follow the standardized CSI three-part format: General, Products, Execution
- They ensure clarity, legal protection, quality control, and accurate bidding
- They directly impact building quality and long-term performance
- They’re critical for success on both the ARE and CDT® exams
Ready to go deeper? Here are four practical steps to build your expertise:
- Study the CSI MasterFormat structure: Familiarize yourself with the major divisions and how they organize construction information
- Review complete project manuals: Analyze real specification documents from completed projects to understand their structure and content
- Practice identifying specification content vs. drawing content: For any building element, determine what information belongs in drawings and what belongs in specs
- Start with Division 01: Focus on the General Requirements section first to build a foundation before diving into technical divisions
Mastering construction specifications is a fundamental skill for architects, contractors, and anyone involved in the building industry. They may not be the most glamorous part of the job, but they’re absolutely essential for turning design intent into a successful built project.
